Expansion Forming Machine





















Listed are some of the features and capabilities

  • 30 ton hydraulic cylinder with 15 horse power Hydraulic Power Unit (HPU)

  • 30 gallon tank which give the functionality of moving the 2 axis system fast and efficiently

  • Fully programmable touch screen LCD controller with over 30 adjustable parameters

  • Programmable positioning table for accurate and quick indexing of feature axis location

  • 15" of travel on the forming cylinder and 32" of travel on the positioning table

  • Foot pedal or touch screen operational capabilites

  • Low maintenance cost

  • 480 Volt 3 phase power

  • Fully adjustable height and pivot arm for LCD

  • Optional HPU and cylinder sizes available

  • 1 year limited warranty

  • UL listed



With countless development hours Docent Design can provide the best solution whether it only be the machine, tooling, or both to give the best part which meets design requirements and function.

Coming soon from Docent Design a fully electric Expansion Forming machine with 30,000 lb force cylinder, electric motor table positioning with 3rd axis rotation of work piece.

Contact Docent Design for more information or quote


Model 30T

The Docent Design Expansion Forming Machine shown below functions as a fully programmable CNC Forming machine which will form tube blanks into bellows. Form Tooling is fabricated per the customers requirements to give the end product or bellows. The machine can form a functional part speedily, and with repeatable process due to the CNC program storage capability.









Custom CNC Forming Machine
Custom CNC Forming Machine
Custom CNC Forming Machine

Model 30T Expansion Forming Machine

Custom CNC Forming Machine

Model 30T Expansion Forming Machine

Roll Forming Machine

Model 3H

The Docent Design Roll Forming Machine shown below is capable of rolling beads, convolutions or other formed features in round tubes set by the form tooling. The strength, rigidity, rotation,and setup options produce a functional part which meets the end user requirements.

Listed are some of the features and capabilities

  • 3 horse power drive motor with speed reduction gear box

  • Variable speed drive functionality, 0 to 120 rpm

  • Fully programmable VFD

  • Foot pedal with clockwise and counterclockwise functionality

  • Emergency stop

  • 15" maximum throat depth

  • 2.5" high strength main shaft diameter

  • 3.5" upper shaft travel

  • Adjustable upper shaft linear stop

  • Large storage in heavy duty cabinet, 1200 lbs per shelf maximum

  • 1 year limited warranty

  • UL listed

Countless development hours thus Docent Design can provide the best solution whether it only be the machine, tooling, or both to give the best part which meets design requirements and function.

Contact Docent Design for more information or quote

Custom Roll Forming Machine

Model 3H Roll Forming Machine

Custom Roll Forming Machine
Custom Roll Forming Machine

Docent Design CNC Forming Machines Video

All Videos

All Videos

All Videos
Search video...
Exp Form 1

Exp Form 1

00:59
Play Video
Roll Form 1

Roll Form 1

00:21
Play Video

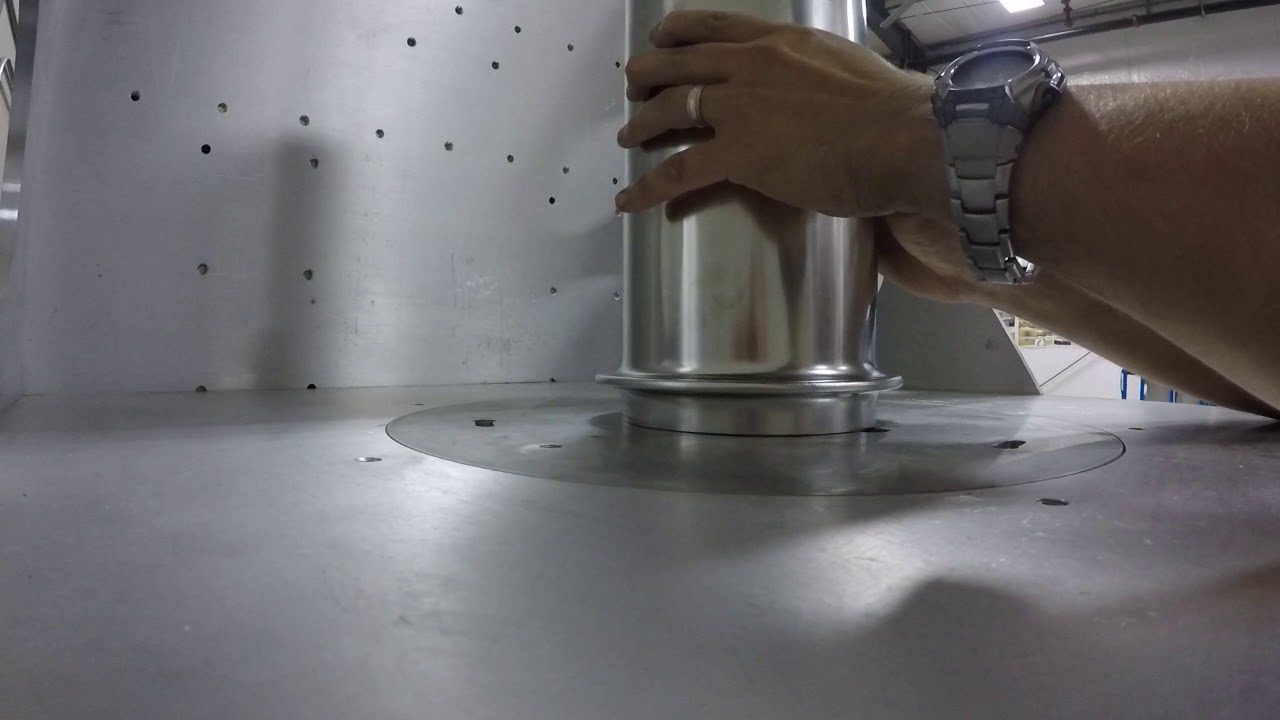

Expansion Forming Machine Demo 1

Expansion Forming Machine Demo 1

00:36
Play Video
